In the modern packaging industry, the carton palletizing shaping process is one of the key links to ensure the quality and stability of packaging. Carton squaring mechanism is widely used in various packaging lines to ensure that the carton remains perfectly square during the filling and sealing process. This mechanism achieves efficient and accurate shaping through sophisticated mechanical design and advanced control systems.

Working principle of carton squaring mechanism

The core function of carton squaring mechanism is to adjust the corners of the carton to the ideal right angle through multi-directional adjustment. Generally, shaping mechanisms include layer squaring machine and 4-side squaring mechanism. The layer squaring machine adjusts the bottom layer of the carton to keep it parallel and aligned with the upper layer of paperboard. The 4-side squaring mechanism further ensures that all four sides of the carton can achieve the ideal vertical state.

Application of layer squaring machine

The layer squaring machine plays an important role in the carton shaping process. It monitors and adjusts the bottom layer of the carton in real time through a series of sensors and robotic arms. The sensor detects the edge position of the carton, and the robot arm makes precise adjustments based on the sensor data to ensure the parallelism between the bottom and upper layers of cardboard. This process not only improves the shaping accuracy of the carton, but also effectively reduces human intervention and improves production efficiency.

Advantages of 4-side squaring mechanism

The 4-side squaring mechanism provides higher accuracy and stability in the carton palletizing process. The mechanism usually consists of four independent adjustment units, each of which can independently adjust one corner of the carton. Through this design, the 4-side squaring mechanism can make detailed adjustments to each corner of the carton to ensure that all corners can achieve the ideal vertical state. The application of this mechanism greatly improves the overall squareness of the carton and reduces packaging problems caused by carton deformation.

Summary

The carton squaring mechanism achieves efficient and accurate shaping of the carton through the coordinated work of the layer shaping machine and the four-side shaping mechanism. The application of this mechanism not only improves the production efficiency of the packaging line, but also effectively improves the overall quality and stability of the carton. In the modern packaging industry, carton squaring mechanism has become an indispensable and important equipment, providing reliable technical support for various packaging tasks.

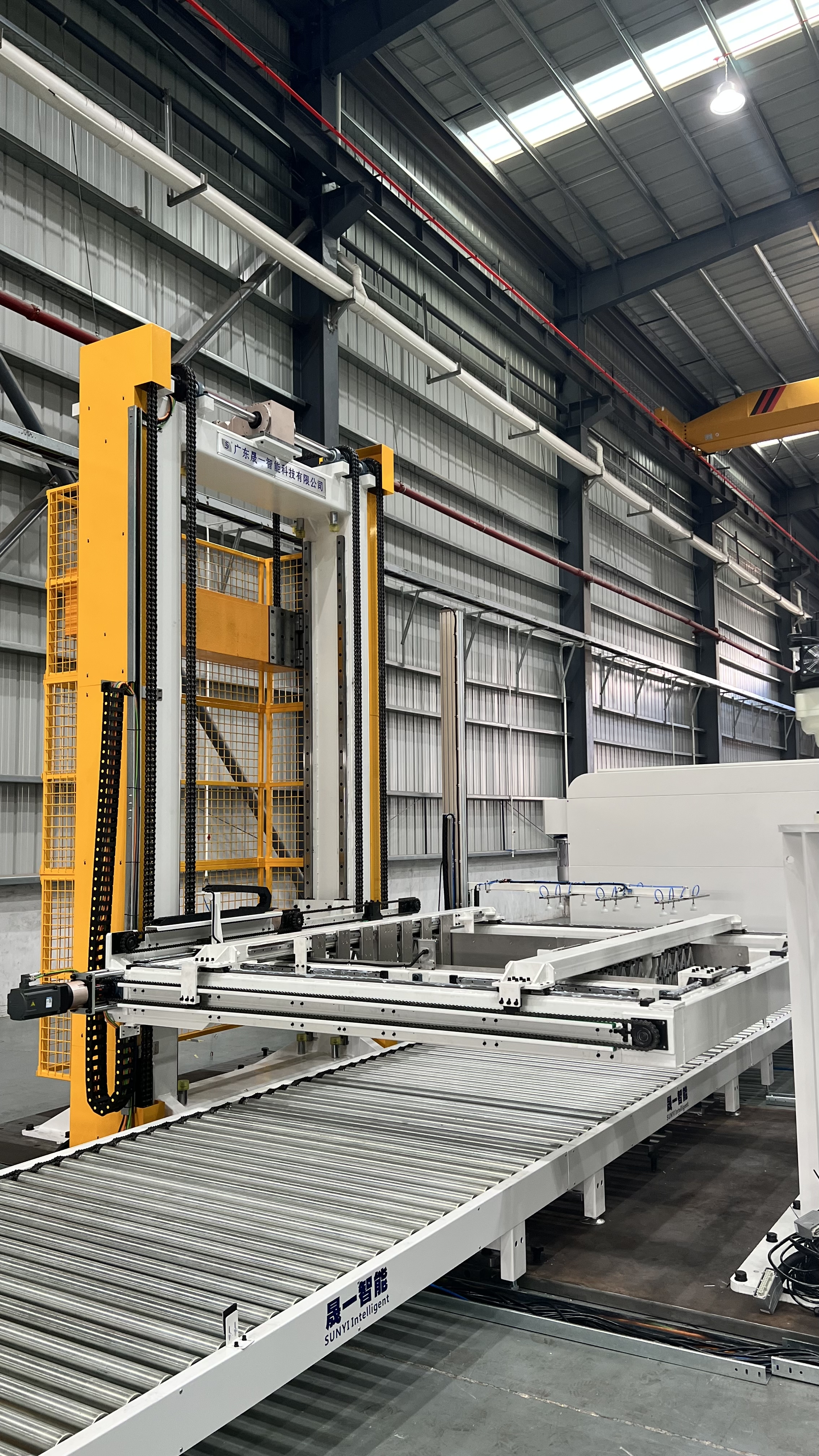

Equipment configuration: 4-side squaring device

1. It covers smaller area, can meet the requirements of the insufficient space

2. Single-layer squaring function, it can effectively solve the uneven stacking of cartons which is easy to collapse

3.New invention design with patent.

4.Adopting a double chain design, more durable to use.

5.A 2-ton counterweight block is added to the bracket, making the structure more

stable and driving easier
